Description

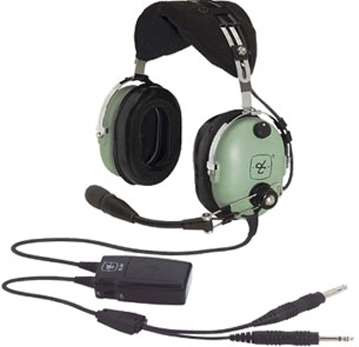

DCH10-13X David Clark H10-13X Headset
You'll hear and feel the difference immediately. When the ENC is turned ON, low frequency noise cancellation improves by an additional 17-22 dB. Super Soft Head Pad; New Comfort gel, undercut ear seals; Battery Power Module - One 9 volt battery for up to 25 hours of operation. Exclusive, patented flex/wire boom for easy, precise microphone placement. Reduced headband pressure. Pilot Selectable Automatic-Shut Off Feature. M-7A noise canceling electret microphone provides clear, crisp transmission. Stereo compatible for use with stereo intercom and cabin entertainment systems. Weight (without cord assembly): 18 oz.
- Super Soft Head Pad
- New Comfort gel, undercut ear seals
- Battery Power Module - One 9 volt battery for up to 25 hours of operation.
- Exclusive, patented flex/wire boom for easy, precise microphone placement.
- Reduced headband pressure.
- Pilot Selectable Automatic-Shut Off Feature.
- M-7A noise canceling electret microphone provides clear, crisp transmission.
- Stereo compatible for use with stereo intercom and cabin entertainment systems.
- Weight (without cord assembly): 18 oz.
(This headset does not qualify for free shipping)
|
H10-13X
|
|||
|
NSN 5965-01-447-6274
|
|||
|
Special Features: Electronic Noise Cancelling |
 |
||
| Impedance: Standard |
NRR: N/A
|
||
| Earphone Type: | Dynamic(ENC) | Noise-Canceling Mic: | M-7A Amplified Electret |
| Earphone Impedance: | Monaural, 150 Ohms nominal, stereo, 300 Ohms nominal per side | Mic Impedance: | 50 ohms +/- 20% |
| Earphone Sensitivity: | 90 dB SPL on flat plate coupler, re 1mW input @ 1KHz | Mic Sensitivity: | 400mV RMS ±6dB into 150 ohm load @ 1kHz for 114dB SPL input |
| Earphone Frequency Response: | 100-5,500 Hz | Mic Freq Response: | 300Hz--3.5KHz per RTCA DO 214 |
| Earphone Plug: | PJ-055 (.25" phone plug) | Mic Plug: | PJ-068 (.206" phone plug) |
| Boom Type: | Patented Flex/Wire | Cord: | 5 ft.Straight |
| Headpad/Hardware: | Super-Soft, Double-Foam Headpad,Lightweight Hardware | Weight/Headset Only: | 18 oz. |
