Description
Overview

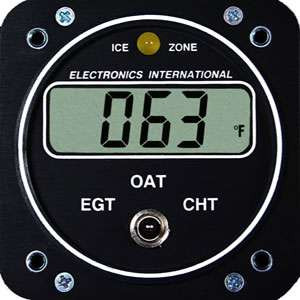

Electronics International provides the budget-conscious pilot the option to monitor their Exhaust Gast Temperature, Cylinder Head Temperature and Outside Air Temperature with the same precision found in the most advanced analyzers on the market, while not breaking the bank. The EAC-1 provides pilots with One Channel of EGT, One Channel of CHT and One Channel of OAT readings in a stable, one-degree digital format. With a toggle switch, select which temperature you would like to monitor. The large, crisp LCD is viewable in direct sunlight, and is backlit, making it easy to monitor your EGT, CHT and OAT.
Specifications
Size (H x W x D)
2.5" x 2.5 " x 2.65"
Weight - Instrument
7 oz.
Weight - Channel
2 oz for a Temperature Probe & XS-6' Cable
Power Requirements
7.5 to Volts, 1/10 Amp
Display
Viewable in direct sunlight, with dimmable 12 and 24 volt backlight control lines.
Accuracy
1/2%
Intensity Control: An external control line allows you to control the Backlight intensity.
Probes
Type K Thermocouple, Ungrounded
Kit Includes
Instrument, P-110 EGT Probe, P-100 CHT Probe, P-128 Precision OAT Probe, 2 ea. XS-6' Thermocouple Cable, 1 ea. XP-6' Precision OAT Cable, Wire Harness, Installation and Operating Instructions.
