Description
Overview

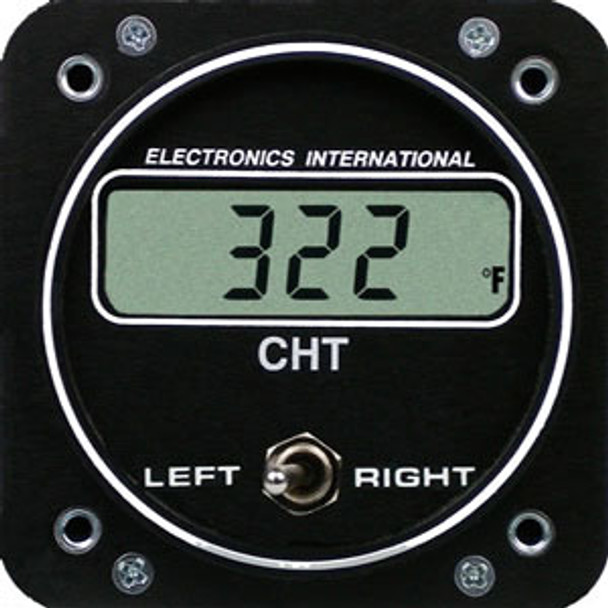

The C-2 provides pilots with an easy, cost-effective method of monitoring Cylinder Head Temperature on their twin aircraft. The instrument has two channels of CHT, one for each engine. For upgrades, see the Remote Switches section.
Specifications
Size (H x W x D)
2.5" x 2.5 " x 2.65" Depth
Weight - Instrument
7 oz.
Weight - Channel
5 oz for a P-110 EGT Probe & XS-20' Cable
Power Requirements
7.5 to Volts, 1/10 Amp
Display
Large LCD, viewable in direct sunlight, with dimmable 12 and 24 volt backlight control lines.
Accuracy
1/2%
Intensity Control
An intensity control line allows you to control the Backlight intensity.
Probes
Type K Thermocouple, Ungrounded
Kit Includes
C-2 Instrument
2 ea. P-100 CHT Probes
2 ea. XS-20' Thermocouple Cables
Wire Harness
Installation and Operating Instructions.
