Description

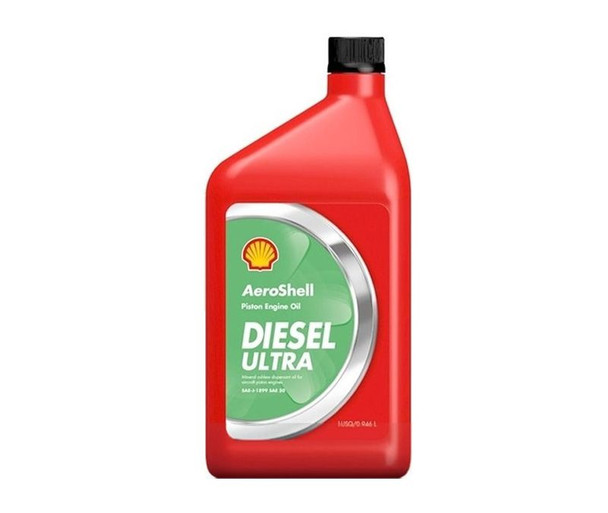

AEROSHELL OIL DIESEL ULTRA (Litre)
AeroShell Oil Diesel Ultra is a fully synthetic, multigrade engine oil designed for use in the
new generation of compression ignition (Diesel) Aviation Piston Engines.
The formulation has been selected to be suitable in piston engines fueled by Jet A or Jet
A-1 and is designed for use in the latest highly rated turbocharged diesel engines under all
operating conditions.
APPLICATIONS
AeroShell Oil Diesel Ultra is a fully synthetic engine oil containing a unique additive
package to provide superior piston cleanliness, resulting in a clean, efficient and reliable
engine. This package includes a powerful surface active additive, which bonds to the
surface of highly loaded engine parts, protecting the engine from scuffing damage.
This oil has been developed to provide excellent component wear protection and engine
cleanliness, based on substantial engine and component endurance tests with all the major
diesel aero-engine manufacturers, and flight experience with diesel aero-engines in the field
over recent years.
AeroShell Oil Diesel Ultra has been developed to be suitable for use in engines burning Jet
fuel and its performance has been optimised to cope with the demands of this unique type
of engine/fuel combination. Its key performance features include the ability to sustain high
bearing loads, neutralisation of acid build up from the sulphur present in the fuel, and high
dispersancy to allow for the relatively high particle loading produced when burning Jet fuel.
AeroShell Oil Diesel Ultra MUST NOT be used in spark ignition or Avgas powered aircraft
engines.
ENGINE MANUFACTURERS’ APPROVALS
AeroShell Oil Diesel Ultra is approved to Mercedes Benz Specification 229.5, recognised
and required by the leading Diesel aero engine manufacturers AeroShell Oil Diesel Ultra is
approved for use in the following engines. Whilst this is correct at the time of writing, testing
is ongoing to extend this approval listing as new engines are produced.
Typical Properties Diesel Ultra
Oil type Fully synthetic hydrocarbon
SAE viscosity grade Multigrade 5W-30
Density @ 15ï½°C kg/l 0.84
Kinematic viscosity mmï½²/s
@ 100ï½°C 12.2
@ 40ï½°C 68.2
Pourpoint ï½°C –39
Flashpoint Cleveland
Open Cup ï½°C 215
HTHS viscosity
@ 150ï½°C mPaS 3.50
U.S. -
British -
French -
Russian -
NATO Code -
Joint Service Designation -
ACEA Meets the requirements of A3/B4
API Meets the requirements of SL/CF
Mercedes Benz MB 299.5
SAE Viscosity grade 5W-30
Thielert/Centurionï½® Engines 1.7 & 2.0 Centurionï½® (Other models yet to be
produced)
Austro Engine AE300
NOTE: AeroShell Oil Diesel Ultra is replacing AeroShell Oil Diesel 10W-40.
