Strut Parts

8990C (AN6287-1)  Strut valve kit High Pressure oleo strut valve.  (operating pressures up to 3000 psi)  Fits most general aviation makes and models Includes: AN 6287-1 Valve 302 DN Valve Core 632 Valve Cap

9019 (MS28889-2) Strut valve kit High Pressure oleo strut valve.  (operating pressures up to 5000 psi)  Fits most general aviation makes and models Includes: MS28889-2 Valve 302 DN Valve Core 632 Valve Cap

AN901-5A Crush Gasket Fits most strut valves

Beech 33 main strut service kit.  Our PPB33MSSK service kit fits the Beech A33, B33, C33 , E33, C33A and E33A . The kit contains the O-rings, scraper, cotter pins, valve core, valve cap and back up rings.

Beech 50 Twin Bonanza series nose and main strut service kit.  Our PPB50MSSK service kit fits the Beech 50B, C and D model Twin Bonanzas with the  with the 50-810000 and 50-820000 series gear. The kit contains the O-rings, scraper, cotter pins,...

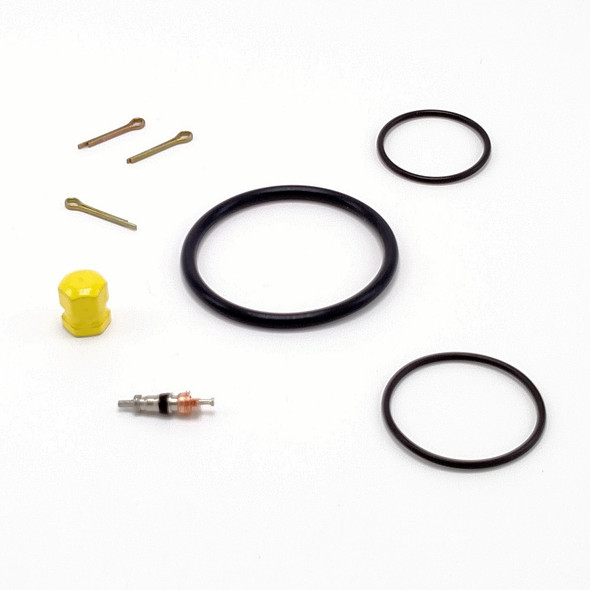

Beech 77 Skipper nose strut seal kit. For the Skipper series with 108-820000-1 landing gear.

Beech 95 Travel Air main strut seal kit- for serial numbers TD-1 thru TD-523 . Plane Parts PPB95MSSK main strut seal kit contains the scraper ring, back up rings, O-rings, valve core, cap and cotter pins. Be sure to check with your manual for part...

Beech Baron series main strut service kit.  Our TB58MS-1 service kit fits the B55, E55, 56TC, 58, 58P and 58TC with the 60-810000 series main gear. The kit contains the O-rings, scraper, cotter pins, valve core, valve cap and back up rings. TG-1...

Beech King Air main strut service kit. Our PPBKAMSSK service kit for the King Air  100, 200 and 300 series.

Beech King Air nose strut service kit. Our PPBKANSSK service kit for the King Air 100, 200 and 300 series.

Beech Queen Air 65 80 A80 nose and main strut service kit.  Our PPb80MSSK service kit fits the Beech 65, 80 and A80 Queen Air nose and main struts.  The kit contains the O-rings, cotter pins, valve core and valve cap.

Cessna 335 340 nose strut service kit. Our PP340NSSK service kit for the Cessna 335 and 340 series. Contains the valve core, valve cap, Polypak, scraper ring and O-rings.

We are now offering our PP340NSSK and PP340MSSK nose and main strut service kits for the Cessna 335 and 340 series. Our kits come with the valve core, valve cap, Polypak seal, scraper ring and O-rings.

Cessna 400 series main strut service kit. Our PP400MSSK service kit for the Cessna 400 series. Our kit contains the valve core, valve cap, Polypak, scraper ring, and O-rings.

Dill 302 Strut valve core Meets MIL-C-5499. Pressure range 0 - 2000 psi Temperature range -65 F to 225 F. Fits:  SK15171 Valves          8990C Valves          9019C Valves

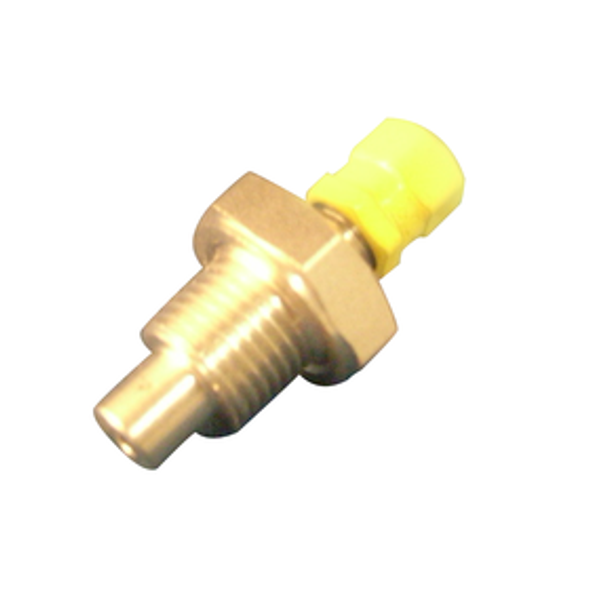

Dill SK15171-302-637 Strut valve kit High Pressure oleo strut valve.  (operating pressures up to 1500 psi) Fits most general aviation makes and models Includes: AN 812-1 Valve 302 DN Valve Core 632 Valve Cap

Navion main strut seal kit.

Navion nose strut seal kit.

Piper 63595-000 Cover This is the original equipment cover that goes over the landing gear strut valves on all Piper Aircraft.  It incorporates a locking ring that keeps it from falling off after a hard landing. Available unpainted only

Piper PA24 nose and main strut service kit.  Our PPPA24MSSK service kit fits the PA24-180, 250, 260 and 400 series nose and main struts.  The kit contains the O-rings, wiper rod, valve core, valve cap and back up rings.

Piper PA28-201,201T,R201,R201T nose strut seal kit. Our PPPA28201NSSK service kit fits  PA28-201, PA28-201T, PA28R201 and PA28R201T . It contains the O-rings, valve core, valve cap, and wiper strip. This kit is unique to the listed models only.

Piper PA30 / PA39 Twin Commanche nose and main strut service kit.  Our PPPA30MSSK service kit fits the PA30 and PA39 series nose and main struts.  The kit contains the O-rings, wiper rod, cotter pins, valve core, valve cap and back up rings.

Piper PA31 Navajo Chieftain main strut seal kit. Our main strut service kit has all the orings and seals you need to repack the main strut on the PA31 series. For PA31-300, -310, -325, -350.

Piper PA31 Navajo Chieftain nose strut seal kit. Our nose strut service kit has all the orings and seals you need to repack the nose strut on the PA31 series. For PA31-300, -310, -325, -350.

Piper PA44-180 / -180T main strut service kit .  Our PPPA44MSSK1 service kit fits the PA44-180 / 180T Seminole series with 78723-29, -30 and -31 gear . The kit contains the O-rings, wiper rod, cotter pins, valve core, valve cap and back up rings.

Piper PA44-180 / 180T nose strut service kit.  Our PPPA44NSSK1 service kit fits the PA44-180 and 180T Seminole series with 67100-08 gear . The kit contains the O-rings, wiper rod, cotter pins, valve core, valve cap and back up rings.

Piper PA44-180 main strut service kit.  Our PPPA44MSSK2 service kit fits the PA44-180 Seminole series with 78723-22 and -23 gear . The kit contains the O-rings, wiper rod, cotter pins, valve core, valve cap and back up rings.

Piper PA44-180 nose strut service kit.  Our PPPA44NSSK2 service kit fits the PA44-180 Seminole series with 67100-13 gear . The kit contains the O-rings, wiper rod, cotter pins, valve core, valve cap and back up rings.

637 Schrader Valve Cover The VC5 Valve Cap is made of brass and meets MS-20813-1. It is designed for wrench tightening and has a special sealing washer for 0-5000 psi and -65F to 160F temp. range.

Our PPT34NSSK nose strut service kit for the T-34 models with 45-825001 series nose landing gear. Replace worn or damaged o-rings, scraper and valve core with our service kit.
