Description

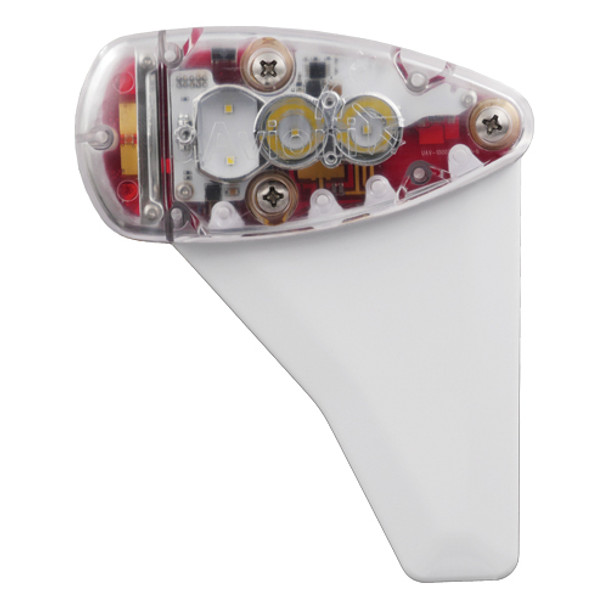

The skyBeacon - Wing is a 2020 compliant, class B1S ADS-B UAT transmitter and WAAS GPS. It was created to be easy to install and configure by allowing it to be integrated into a wing tip position light - remedying the need for costly panel modifications and new transponders. It features a a UAT (978MHz) transmitter with a blade antenna that minimizes installation and antenna placement errors. The built-in WAAS GPS offers rule compliant position data for ADS-B transmission without the need for additional wiring or external GPS antenna mounting. The power transcoder decodes legacy Mode C and Mode S replies. The skyBeacon package also has has an integrated altitude encoder that doesn't require a connection to static pressure systems, but rather benefits from being mounted in an ideal altitude sensing location and contains Continuous Calibration™ technology.Continuous Calibration™ technology (Patent Pending) automatically and continuously calibrates the integrated altitude encoder for correspondence with the aircraft transponder’s altitude encoder, allowing compliant operations in remote and challenging environments. Final touches include LED position and anti-collision lights.
The skyBeacon - Wing integrated solution consists of a total of five (5) TSOs:
- ADS-B (TSO-C154c, Class B1S)
- GPS (TSO-C145d, Class Beta 1)
- Barometric altitude sensor (TSO-C88b)
- Position Light (TSO-C30c, Type I)
- Anti-collision light (TSO-C96a, Class II)
UAT Transmitter
Meets the performance requirements of TSO-154c Class B1S. RTCA DO-282B Class B1S
Position Light
Meets performance requirements of TSO-C30c Type I
WAAS GPS
Integrated RAIM processor for Security and Integrity protection
SBAS corrections and health messages used to detect and correct satellite range errors
Satellite pseudo range step errors detected and excluded
SBAS fast and long-term corrections applied
Power Transcoder
Decodes altitude and squawk via aircraft electrical system
Certification
STC data package accepted by FAA with 272 aircraft AML
Regulatory
FCC ID 2AFFTUAT016R
ADS-B Out: 91.255, 91.227, AC 20-165B
GNSS Position: AC 20-165B
Position Light: SAE/AS8037
Weight:
90 grams
Dimensions:
124 x 116 x 48 mm
Input voltage:
11 - 31 VDC
Operating power:
3 watt
Operating temp:
-45°C to 80°C
LED position light:
Aviation Red, Intensity: 40 candelas
Power classification:
978 MHz UAT Transmitter: DO-282B Medium Power
WAAS GPS:
Tracking: 166 dBm
Reacquisition: 160 dBm
Cold Start: 148 dBm
Power transcoder:
Decodes Mode A,C and S via DC input
