Lighting

040-0003 Aero Flash 24V Quartz Lamp.  Fits older model Cessna  and other aircraft Supercedes 40-6,40-6A and 40-27

(01-0771833-10) Whelen Parmetheus Plus bulb is an Super-LED direct replacement for  14 volt 1.36 amp landing light bulbs.  Whelen

GE-1073 12V, 32 candle power, used in many Grimes tail light installations (same as 1777, but more candle power).

AeroFlash 150-0002 24-28 volt Power Supply.  This is a new part

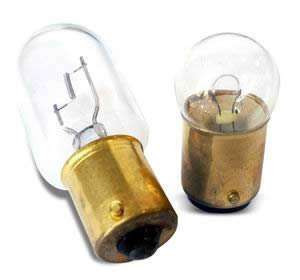

GE 1683 28V, 32 candle power, common tail light

1770 Bulb 12 Volts 1.52 Amp 19 Watts   Used for tail position light S-8 bulb

1816  13V, 3 candle power interior lamp

1818 Bulb (24v) 24V, 3 candle power interior lamp

1820 Interior Bulb 24V, 3 candle power interior lamp

307 Tail Light (28v)  28V, 21 candle power tail light

GE-327 28V, .34 candle power instrument lamp

330 14V, .50 candle power instrument lamp

13 volt 250 watt Sealed Beam Landing Light

GE 4509 Landing Light 100 watt, 13 Volt. Code 8

250 watt, 13 Volt. Code 8

28V-250W-25 hrs.-screw terminals

GE 4570 Landing LIght 28V-150W-300 hrs.-screw terminals

28V-150W-300 hrs.-screw terminals

GE 4587 Landing Light 28V-250W-25 hrs.-screw terminals

4591 Sealed Beam Landing light 100W, 28 Volt. Code 8   Replacement for GE4 591

100 watt, 13 Volt. Code 8

28V-250W-25 hrs.-screw terminals

28V-150W-300 hrs.-screw terminals

28V-100w-300 hrs.-screw terminals

53 12V instrument panel light

Whelen 68-2170504-50 All Red Lens

Replaces A7079B-24. 28V/40W, 150 hrs. Avg. Life. Standard 24-volt bulb for Grimes type rotating beacons.

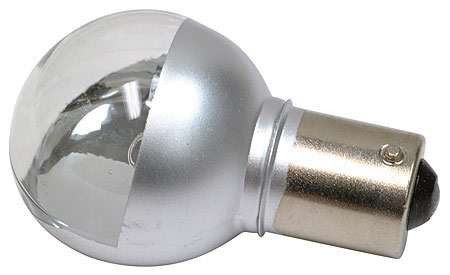

Replaces A7512-12, W1290 & 1512. 12V/26W 300 hrs. Avg. Life. 12 Volt navigation light bulb. Fits most 12-volt general aviation aircraft.

Replaces A7512-24, W1290, 1524 & 34-0428020-65. 28V/26W, 300 hrs. Avg. Life. 24-volt navigation light bulbs. Fits most 24-volt general aviation aircraft.

89 12V instrument panel light

Aero Flash 12V Quartz Lamp 040-0028

Replacement AML Bulb 1495 - 28.0 Volt .30 Amp. T-4 1/2 Miniature Bayonet Specifications Filament Shape: C-2R MSCP: 6.0 Average Life: 500 Hours Maximum Overall Length: Appr. 1.38"

Replacement Bulb - Miniature Bayonet - AML 1815 Specifications Size T-3 1/414.0V.20 AMPS

Replacement Bulb - Miniature Bayonet - AML 44 Specifications Size T-3 1/46.3V.25 AMPS

12V instrument panel light

GE 93 Bulb 12 Volt 15 Candle Power Used in tail position lights

Note: GE brand bulbs will be provided if available. Some model lamps are no longer manufactured by GE, in which case we will provide an equivalent lamp meeting the same specifications. Miniature...

Miniature Lamp, 756-1, T3 1/4, 14V

LED Midget Flanged Bi-Polar LampT1-3/4 (6-28 volts) A direct LED replacement for Midget Flanged Based miniature incandescent lamps. Long-life, low power consumption, shock resistance, and...

Overview Note: GE brand bulbs will be provided if available. Some model lamps are no longer manufactured by GE, in which case we will provide an equivalent lamp meeting the same specifications...
