Description
OAT or Carb Temp

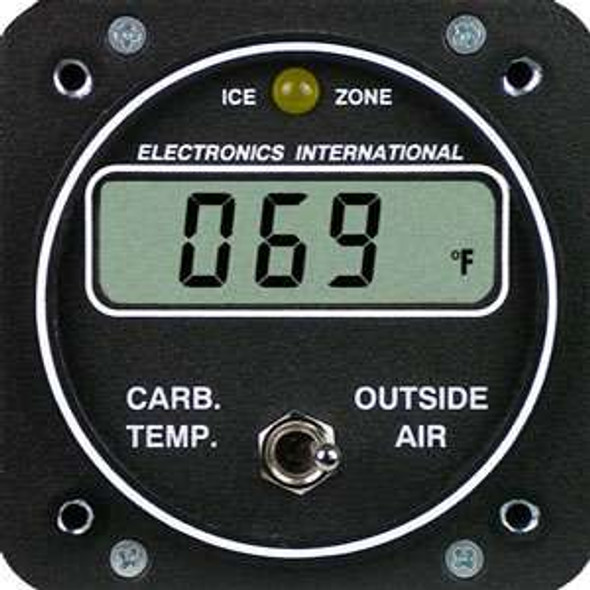

Electronics International's A-1 instrument provides pilots with the precision and stability needed in order to accurately monitor Outside Air Temperature or Carburetor Temperature while in-flight.
Ice Zone Warning
Not only will Electronics International's A-1 display Outside Air Temp with a stable, one-degree (Fahrenheit) resolution, it also comes complete with an "Ice Zone" light that alerts the pilot when the Outside Air Temperature could possibly contribute to ice forming in the aircraft carburetor.
Specifications
Dimensions
2.5" x 2.5" x 2.65"
Weight
7 oz. (Unit), 1.6 oz for a probe & 6' Cable
Power 7.5 to Volts, 1/10 Amp
Ice Zone Warning
Light is lit when displayed temperature is between 10'F and 39'F.
Display
Viewable in direct sunlight, with dimmable 12 and 24 volt backlight control lines.
Intensity Control
Seperate inensity control lines allow you to independently control Ice Warning Zone and Backlight intensity.
Probes
Type K Thermocouple, Ungrounded
Kit Includes
Instrument, P-128 OAT Probe, XP-6' Precision Thermocouple Cable, Wire Harness, Installation and Operating Instructions.
